Description

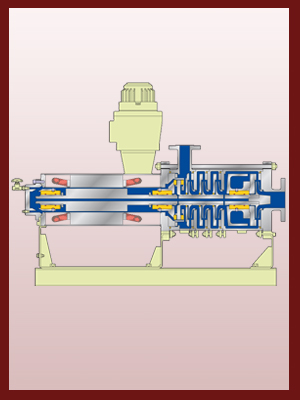

A gas seal type is also available which is suitable for handling heavily corrosive liquid, liquid liable to polymerize or highly concentrated slurry liquid. The construction is basically identical with that of the above Slurry Handling Type with a Mechanical Seal and the feature of this type is that a gas chamber has been installed between the pump unit and motor unit. The pump unit has totally been separated from the motor unit with the gas chamber, thus banishing a fear of the mechanical seal wearing out or corroding by handled liquid.

  Application

Propylene | Benzene | Butadiene | Styrene | Naphtha
Propane | Propylene Oxide | Hexane | Methanol
Liquid Chlorine | Liquid Carbon Dioxide
Gasoline | Hot Oils | Water

  Operating Range

Flow : 1 to 60 m3/hr, higher flow upon request
Head : upto 400m, higher head upon request
Temp : upto 100°C
Pressure : atmospheric to 60 kg/cm2
